66REC-25x25



















APPLICATION

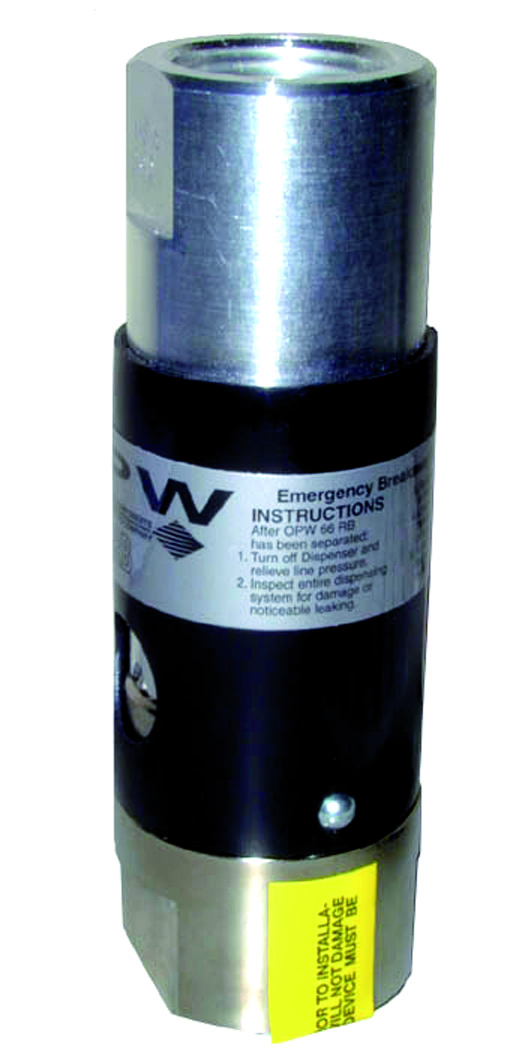

The 66REC-25x25 Reconnectable Breakaway is a breakaway valve for fuel designed for use in today’s truck stop and high-volume markets. Upon separation, the integral check valves closes, stopping the flow of fuel and limiting any spillage from either end of the hose.
For proper operation on high-hanging hoses, the 66REC must always be installed using a “straightening hose” with a minimum length of 250 mm. For low hose applications, the 66REC should be installed down stream of the retractor cable.

FEATURES

• Pull Force - The 66REC-25x25 will break away with a pull force of no more than 159kg.
• Easily Reconnected - After relieving line pressure, simply push coupling halves together until latched. Reconnection force is approximately 7kg.
• Protected Coupling and Poppet - The breakaway’s poppets and sealing surfaces are protected from impact during separation by a durable plastic sleeve.
• Low Pressure Drop - The integral check valve design allows for minimal pressure drop for faster high volume fill-ups.
• Listed by Underwriters Laboratories, Inc.

SPECIFICATIONS

Max Static Pressure: 350kPa (50psi)
Size: 1” BSPP
Weight: 0.52kg
Dimensions: A - 51mm, B - 152mm
