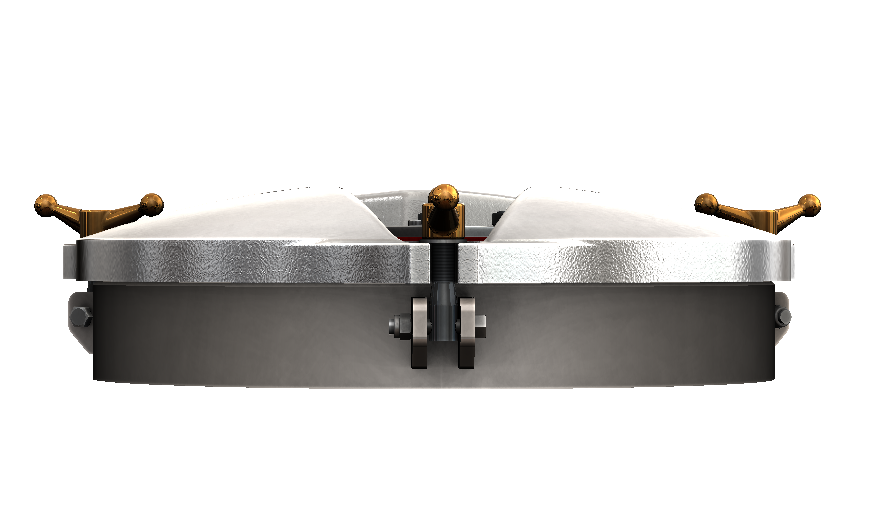

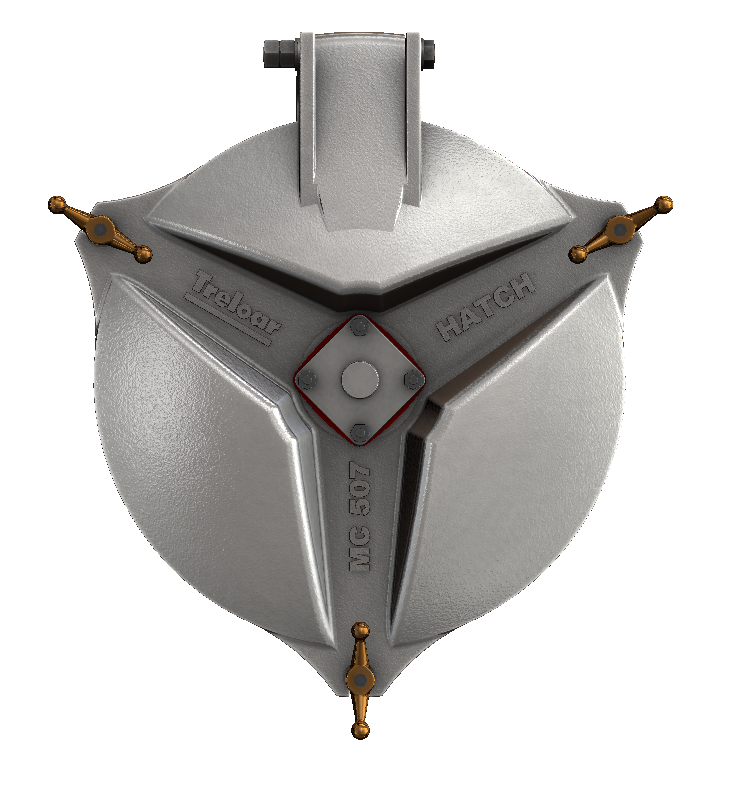

Large Throwover Manway
Large Throwover Manway
Large Throwover Manway
Large Throwover Manway
Large Throwover Manway
Large Throwover Manway
Large Throwover Manway



Order codes Spares

MC507

MC507V







R014381-700 = Seal-Coaming MC507V & MC507 nitrile

R014381-703 = Seal-Coaming MC507V & MC507 viton







APPLICATION

The MC507 manway is used on tankers that require a larger access point. This product is ideally suited to mine site service vehicle applications and Bitumen tankers

FEATURES

• Larger 500mm access compared to traditional type tanker manways
• Three locking handles are used for quick release of the cover when access is required. Three handles also means a secure, even locking action.
• Lightweight aluminium lid with steel weld in coaming.
Available with DPV217 PVV

SPECIFICATIONS

MC507  500mm Throwover manway c/w steel coaming
MC507V  500mm Throwover manway c/w P & V vent and steel coaming
DPV217  P & V vent assembly
