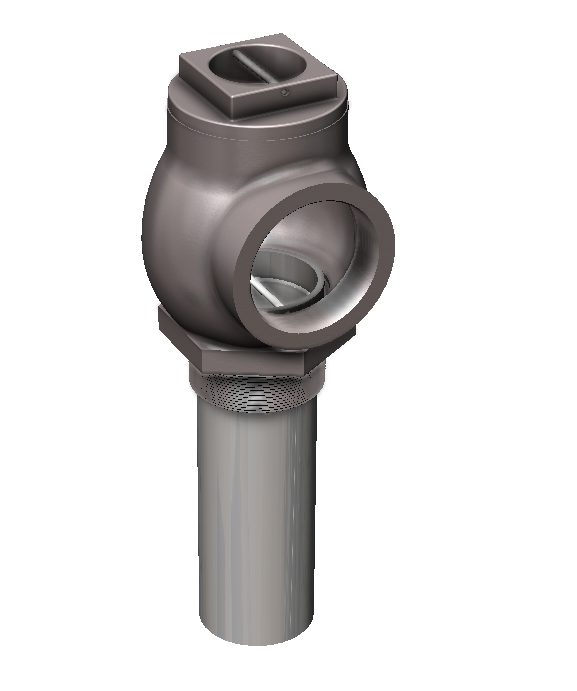

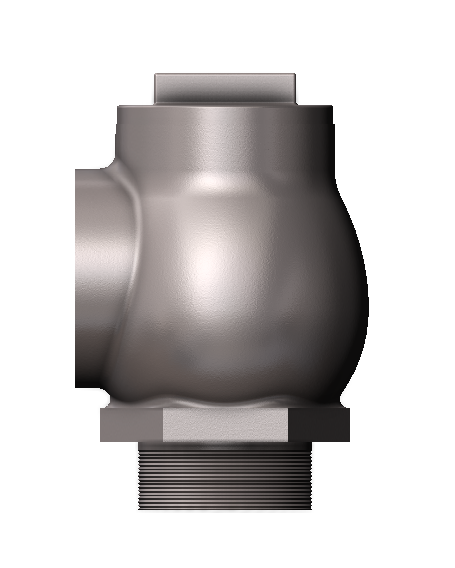

IF-100TM























APPLICATION

The IF-100TM is located at the junction of remote fill pipework and the underground storage tank. The IF-100TM provides the connection between a 4” tank socket and the remote fill pipework. It also facilitates the installation and removal of the tank fill tube and overfill prevention valve, by removing the cap and tube retaining ring.

FEATURES



SPECIFICATIONS

4" BSPT female horizontal socket for fill pipework
4" BSPT male vertical tank fitting
Internal 4" BSPP retaining ring for mounting fill tubes
