Treloar Products
We specialise in engineering and supplying reliable critical fluid transfer equipment for tank trucks, service stations, terminals, depots, gas production plants and more.
Click on the product category or search for the product you are after and view the products below.
- Tank Truck Equipment
- Service Station Equipment
- Nozzles & Dispensing Equipment
- Terminal & Depot Equipment
- Fluid Transfer Fittings
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

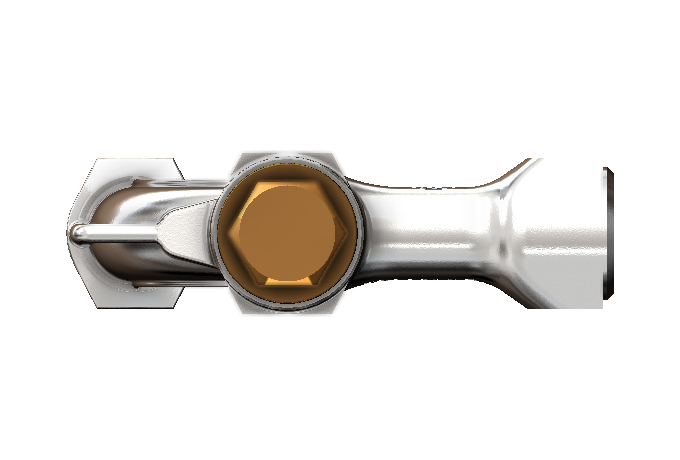

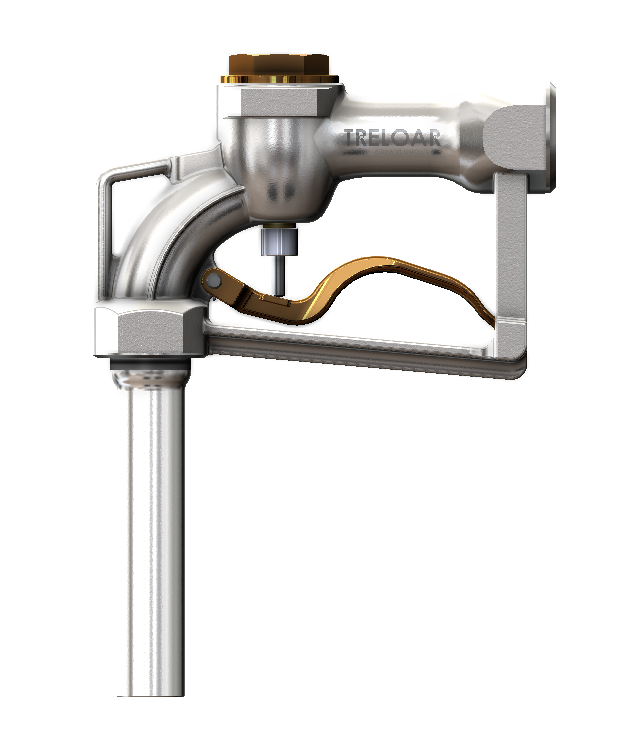

High Flow Manual Nozzle
| Order codes | Spares |
|
210-40 standard 210-40-T teflon
|
210K1-40: Kit stem & Packing
|
APPLICATION
The 210-40 Treloar High Flow/Pressure manual nozzle provides reliable delivery for higher flow rates and applications where line shock may be a concern. A non-adjustable dash-pot device incorporated within the main valve assembly provides shockless closure, minimising damage on pump and meters. At high flow rates this nozzle is easy and safe to handle.
FEATURES
• Easy Opening - accurate ‘topping-off” the small secondary poppet lifts first, partially relieving the pressure in the dash pot. This allows the main valve to be easily lifted for full flow.
• High Flow - large flow areas permit fast filling of tanks -low pressure drop.
• Long Life - heavy duty drag lugs will take the abuse if the nozzle is dragged across a rough surface.
• Four Flow Rates - 210 has four hold-open notches in the heel of the handle to enable you to establish the right flow without effort.
• A non-adjustable dash pot is standard for reduced line shock on closure
SPECIFICATIONS
Inlet Thread: 40 mm (1½”) BSP Taper Female
Maximum Static Pressure: 500 kPa (75 psi)
Maximum Recommended Flow Rate: 360 I/min (80 GPM)
