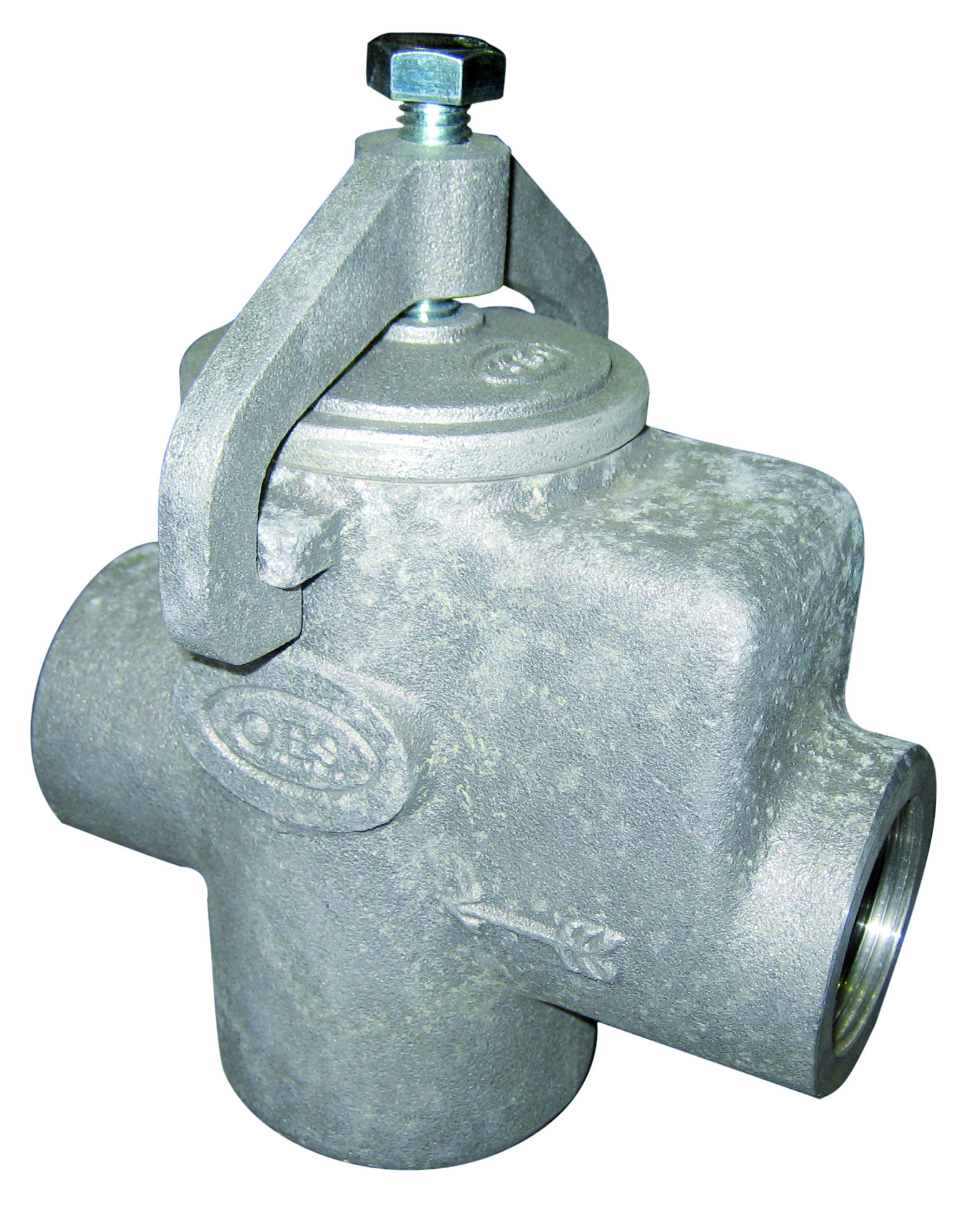

EPEX Strainers
EPEX Strainers
EPEX Strainers
EPEX Strainers
EPEX Strainers



Order codes Spares

SA50-80M

SA40-80M

SB-50M

SB-40M













APPLICATION

The Epex strainers are accepted throughout the petroleum industry offering protection to vital pumping & metering equipment in industrial refuelling and bulk delivery applications.

FEATURES

• Lightweight aluminium body
• Easily removable stirrup fastening & cap for strainer basket cleaning
• 80 mesh standard & 60 - 120 mesh baskets available
• 40mm & 50mm sizes
• Standard BSP threads
• Fluid Temperature: 100°C

SPECIFICATIONS

SA50-80M 50mm strainer c/with 80 mesh basket
SA40-80M 40mm strainer c/with 80 mesh basket
SB-50M 50mm basket only 60 -120 mesh available
SB-40M 40mm basket only 60 -120 mesh available

Inlet & Outlet:
EP 743-05 11/2” BSP; 200psi; 227LPM
EP 743-06 2” BSP; 200psi; 360LPM
